Z - Profile

Z - Profile

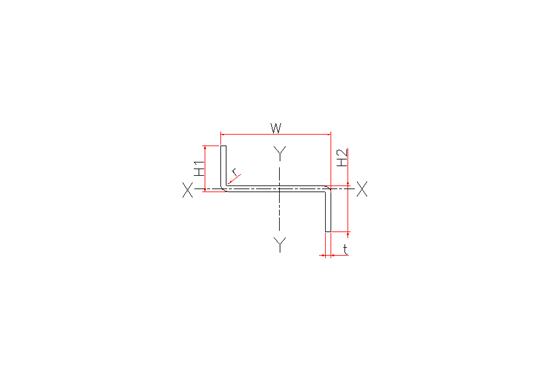

  Max. Min.
W 450 10
H1 and H2 80 10
t 8 8
Section W H1 = H2 t C/S Area Mass Ixx kxx Zxx Iyy kyy Zyy
Z-WxHxt mm mm mm cm2 Kg/m cm4 cm cm3 cm4 cm cm3
Z-10x15x1 10 15 1 0.36 0.28 0.21 0.76 0.14 0.05 0.39 0.11
Z-20x10x1 20 10 1 0.36 0.28 0.06 0.41 0.06 0.19 0.73 0.19
Z-20x10x1.5 20 10 1.5 0.52 0.4 0.08 0.4 0.09 0.26 0.71 0.26
Z-30x15x1.5 30 15 1.5 0.82 0.64 0.3 0.6 0.21 1.05 1.13 0.7
Z-30x15x2 30 15 2 1.07 0.83 0.38 0.59 0.27 1.31 1.11 0.87
Z-30x20x2 30 20 2 1.27 0.99 0.92 0.85 0.49 1.7 1.16 1.13
Z-38x20x1.5 38 20 1.5 1.09 0.85 0.72 0.81 0.37 2.36 1.47 1.24
Z-38x25x2 38 25 2 1.63 1.27 1.85 1.07 0.77 3.65 1.5 1.92
Z-40x20x1.5 40 20 1.5 1.12 0.87 0.72 0.8 0.37 2.67 1.54 1.33
Z-40x20x2 40 20 2 1.47 1.15 0.92 0.79 0.49 3.4 1.52 1.7
Z-40x25x2 40 25 2 1.67 1.3 1.85 1.05 0.77 4.12 1.57 2.06
Z-50x20x2 50 20 2 1.67 1.3 0.93 0.74 0.49 5.83 1.87 2.33
Z-50x22x2 50 22 2 1.75 1.37 1.25 0.84 0.59 6.29 1.9 2.51
Z-50x25x2 50 25 2 1.87 1.46 1.85 1 0.77 6.98 1.93 2.79
Z-60x20x2.5 60 20 2.5 2.31 1.81 1.12 0.7 0.6 10.98 2.18 3.66
Z-60x25x2.5 60 25 2.5 2.56 2 2.25 0.94 0.95 13.05 2.26 4.35
Z-70x30x3 70 30 3 3.63 2.83 4.66 1.13 1.63 25.48 2.65 7.28
