Angles (Equal & Unequal)

Equal Angles :

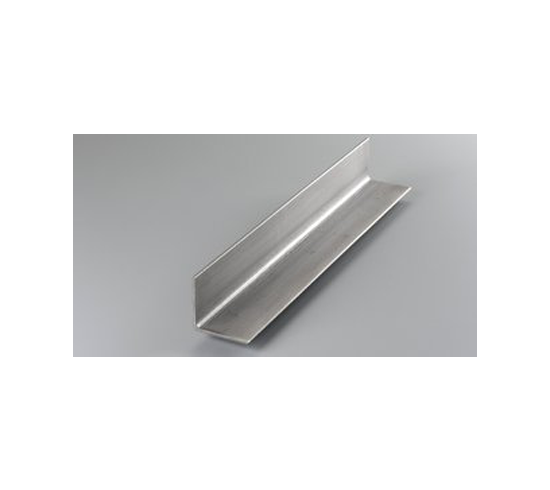

Equal Angles
Angles are used in a number of applications, such as,

  • Transmission Towers
  • Stiffeners
  • Automobile Industry
  Max. Min.
W 125 10
H 125 10
t 8 1

Section H = W t C/S Area Mass Ixx kxx Zxx Iyy kyy Zyy
CH-HxWxt mm mm cm2 Kg/m cm4 cm cm3 cm4 cm cm3
A-10x10x2 10 2 0.33 0.27 0.03 0.29 0.04 0.03 0.29 0.04
A-15x15x1.5 15 1.5 0.41 0.32 0.08 0.46 0.08 0.08 0.46 0.08
A-15x15x2 15 2 0.53 0.42 0.11 0.45 0.11 0.11 0.45 0.11
A-20x20x1.5 20 1.5 0.56 0.44 0.21 0.62 0.15 0.21 0.62 0.15
A-20x20x2 20 2 0.73 0.58 0.27 0.61 0.2 0.27 0.61 0.2
A-25x25x1.5 25 1.5 0.71 0.55 0.43 0.78 0.24 0.43 0.78 0.24
A-25x25x2 25 2 0.93 0.74 0.56 0.77 0.31 0.56 0.77 0.31
A-25x25x3 25 3 1.36 1.06 0.78 0.76 0.45 0.78 0.76 0.45
A-30x30x1.5 30 1.5 0.86 0.67 0.76 0.94 0.35 0.76 0.94 0.35
A-30x30x2 30 2 1.13 0.89 0.99 0.93 0.46 0.99 0.93 0.46
A-30x30x3 30 3 1.66 1.3 1.41 0.92 0.67 1.41 0.92 0.67
A-35x35x2 35 2 1.33 1.05 1.61 1.1 0.64 1.61 1.1 0.64
A-35x35x3 35 3 1.96 1.53 2.3 1.08 0.93 2.3 1.08 0.93
A-40x40x2 40 2 1.53 1.21 2.43 1.26 0.84 2.43 1.26 0.84
A-40x40x3 40 3 2.26 1.77 3.5 1.24 1.22 3.5 1.24 1.22
A-40x40x4 40 4 2.97 2.32 4.49 1.23 1.59 4.49 1.23 1.59
A-45x45x3 45 3 2.56 2 5.07 1.41 1.57 5.07 1.41 1.57
A-50x50x2 50 2 1.93 1.52 4.84 1.58 1.33 4.84 1.58 1.33
A-50x50x3 50 3 2.86 2.24 7.03 1.57 1.95 7.03 1.57 1.95
A-50x50x4 50 4 3.77 2.95 9.09 1.55 2.54 9.09 1.55 2.54
A-60x60x3 60 3 3.46 2.71 12.38 1.89 2.84 12.38 1.89 2.84
A-60x60x4 60 4 4.57 3.58 16.08 1.88 3.72 16.08 1.88 3.72
A-70x70x4 70 4 5.37 4.21 25.96 2.2 5.12 25.96 2.2 5.12
A-80x80x4 80 4 6.17 4.84 39.23 2.52 6.74 39.23 2.52 6.74
A-80x80x5 80 5 7.65 5.97 48.08 2.51 8.31 48.08 2.51 8.31
A-80x80x6 80 6 9.11 7.11 56.58 2.49 9.85 56.58 2.49 9.85
A-100x100x5 100 5 9.65 7.54 95.92 3.15 13.17 95.92 3.15 13.17
A-100x100x6 100 6 11.51 9 113.31 3.14 15.64 113.31 3.14 15.64
A-100x100x8 100 8 15.15 11.81 146.43 3.11 20.44 146.43 3.11 20.44
A-120x120x8 120 8 18.35 14.32 258.61 3.75 29.85 258.61 3.75 29.85


Unequal Angles >>
