Top Hat

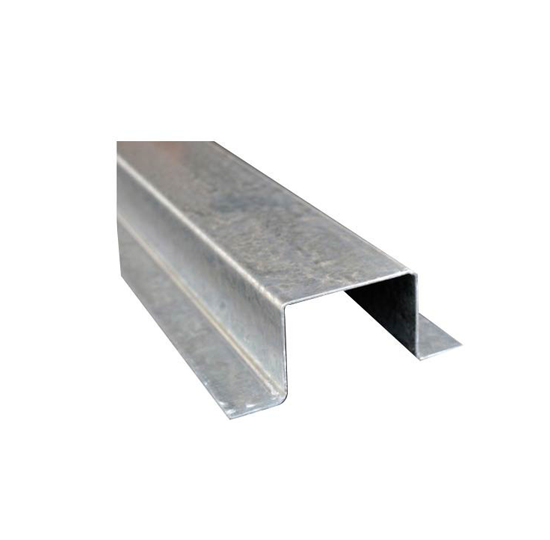

Top Hat
Top hat sections are used for,
  • Truss member
  • Automobile body
  • Fencing
  Max. Min.
W 150 15
H1 and H2 100 5
L1 and L2 30 5
t 3 1
Section W H1 = H2 L1 = L2 t C/S Area Mass Ixx kxx Zxx Iyy kyy Zyy
TH-WxHxLxt mm mm mm mm cm2 Kg/m cm4 cm cm3 cm4 cm cm3
TH-19x20x15x2 19 20 15 2 1.52 1.18 0.75 0.7 0.66 1.98 1.14 0.88
TH-20x12x9x1 20 12 9 1 0.54 0.42 0.1 0.44 0.16 0.55 1.02 0.31
TH-20x25x10x2 20 25 10 2 1.54 1.19 1.13 0.86 0.91 1.46 0.97 0.81
TH-25x25x15x1.5 25 25 15 1.5 1.41 1.11 1.23 0.93 0.94 2.64 1.37 1.02
TH-25x25x15x2 25 25 15 2 1.84 1.43 1.53 0.91 1.16 3.31 1.34 1.3
TH-25x40x15x2 25 40 15 2 2.44 1.9 4.97 1.43 2.39 4.1 1.3 1.61
TH-30x30x15x1.5 30 30 15 1.5 1.64 1.28 2.09 1.13 1.39 3.92 1.55 1.38
TH-30x30x15x2 30 30 15 2 2.14 1.66 2.62 1.11 1.74 4.94 1.52 1.76
TH-30x40x15x2 30 40 15 2 2.54 1.98 5.35 1.45 2.67 5.72 1.5 2.04
TH-30x50x15x2 30 50 15 2 2.94 2.29 9.35 1.78 3.74 6.51 1.49 2.32
TH-38x38x19x1.5 38 38 19 1.5 2.12 1.66 4.52 1.46 2.38 8.29 1.98 2.27
TH-38x38x19x2 38 38 19 2 2.78 2.17 5.74 1.44 3.02 10.57 1.95 2.94
TH-38x44x19x2 38 44 19 2 3.02 2.36 8.2 1.65 3.73 11.35 1.94 3.15
TH-40x40x15x1.5 40 40 15 1.5 2.09 1.64 4.74 1.51 2.22 7.79 1.93 2.33
TH-40x40x15x2 40 40 15 2 2.74 2.14 6.02 1.48 2.81 9.93 1.9 3.01
TH-40x40x20x1.5 40 40 20 1.5 2.24 1.75 5.33 1.54 2.67 9.74 2.09 2.53
TH-40x40x20x2 40 40 20 2 2.94 2.29 6.79 1.52 3.4 12.45 2.06 3.28
TH-40x60x20x2 40 60 20 2 3.74 2.92 18.18 2.21 6.06 15.34 2.03 4.04
TH-40x60x20x2.5 40 60 20 2.5 4.61 3.59 21.96 2.18 7.32 18.44 2 4.92
TH-44x38x25x2 44 38 25 2 3.14 2.45 6.9 1.48 3.5 18.07 2.4 4.01
TH-44x44x25x2 44 44 25 2 3.38 2.64 9.77 1.7 4.29 19.12 2.38 4.25
TH-50x45x25x2 50 45 25 2 3.54 2.76 10.88 1.75 4.83 24.08 2.61 5.02
TH-50x50x20x2 50 50 20 2 3.54 2.76 12.74 1.9 4.83 21.09 2.44 4.9
TH-50x50x20x2.5 50 50 20 2.5 4.36 3.4 15.34 1.88 5.82 25.44 2.42 5.99
TH-50x50x20x3 50 50 20 3 5.16 4.03 17.72 1.85 6.72 29.44 2.39 7.01
TH-65x45x20x2 65 45 20 2 3.64 2.84 11.02 1.74 4.33 33.24 3.02 6.58
TH-80x50x20x2.5 80 50 20 2.5 5.11 3.98 18.55 1.91 6.26 65.28 3.57 11.35
TH-80x50x25x3 80 50 25 3 6.36 4.97 23.74 1.93 8.38 86.84 3.7 14.01
TH-100x50x20x2.5 100 50 20 2.5 5.61 4.38 20.21 1.9 6.45 104.42 4.31 15.47
TH-100x50x30x2.5 100 50 30 2.5 6.11 4.77 24.37 2 8.44 130.74 4.63 16.87
TH-100x50x30x3 100 50 30 3 7.26 5.68 28.33 1.98 9.81 153.45 4.6 19.93
TH-125x38x25x2 125 38 25 2 4.76 3.72 10.63 1.5 4.31 133.92 5.31 15.66
TH-150x44x25x2 150 44 25 2 5.5 4.3 15.93 1.7 5.38 211.87 6.21 21.62
