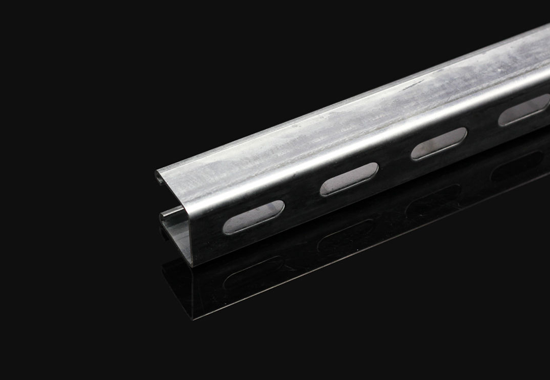

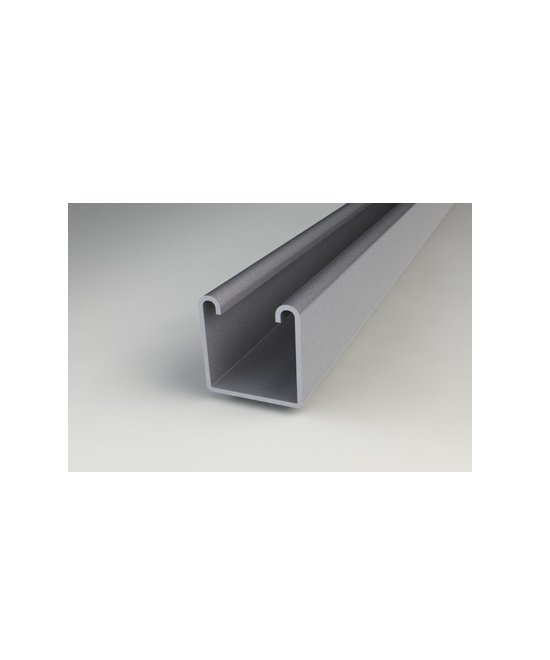

Divy Strut Section

Divy Strut Section
Strut section is a multiple use section. It is very easy to erect a bolted structure with this section. It has another advantage that the structure can be erected on the site with the minimum requirement of other equipments or tools. Strut section can be used in,
  • Storage System
  • Steel Structure
  • Conveyor Guides
  • Automobile Industry
  • Furniture
Section W H1 = H2 L1 = L2 t C/S Area Mass Ixx kxx Zxx Iyy kyy Zyy
DSTR-WxHxt mm mm mm mm cm2 Kg/m cm4 cm cm3 cm4 cm cm3
DSTR-41x41x2.5 41 41 10 2.5 3.40 2.88 7.21 1.46 3.10 9.23 1.66 4.47
DSTR-41x62x2.5 41 62 10 2.5 4.38 3.75 20.40 2.15 6.01 13.13 1.72 6.36
DSTR-41x82x2.5 41 82 10 2.5 5.41 4.63 42.85 2.81 9.64 17.00 1.77 8.24
