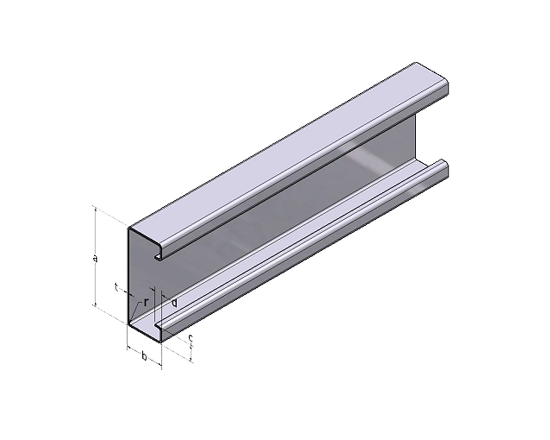

C – Purlin gives similar advantages as Z – purlin. C - Purlins are preferred for cladding as it gives a plane surface on one side.

  Max. Min.
W 450 100
H1 and H2 100 40
L1 and L2 30 10
t 6 1
Section W H1 = H2 L1 = L2 t C/S Area Mass Ixx kxx Zxx Iyy kyy Zyy
CP-WxHxLxt mm mm mm mm cm2 Kg/m cm4 cm cm3 cm4 cm cm3
CP-100x50x15x2 100 50 15 2 4.34 3.39 68.86 3.98 13.77 14.81 1.85 4.52
CP-100x50x15x2.5 100 50 15 2.5 5.36 4.18 84.06 3.96 16.81 17.84 1.82 5.45
CP-100x70x20x2 100 70 20 2 5.34 4.18 90.19 4.11 18.04 37.33 2.64 8.75
CP-100x70x20x2.5 100 70 20 2.5 6.61 5.16 110.48 4.09 22.1 45.43 2.62 10.65
CP-120x50x15x2 120 50 15 2 4.74 3.71 105.36 4.72 17.56 15.78 1.83 4.63
CP-120x50x15x2.5 120 50 15 2.5 5.86 4.57 128.91 4.69 21.48 19.01 1.8 5.57
CP-120x60x18x3 120 60 18 3 7.74 6.05 175.33 4.76 29.22 37.32 2.2 9.5
CP-125x50x20x2 125 50 20 2 5.04 3.94 119.98 4.88 19.2 18.14 1.9 5.48
CP-140x50x20x2.5 140 50 20 2.5 6.61 5.16 192.37 5.39 27.48 22.79 1.86 6.71
CP-150x50x20x2 150 50 20 2 5.54 4.33 184.73 5.78 24.63 19.3 1.87 5.59
CP-150x60x20x2.5 150 60 20 2.5 7.36 5.75 253.93 5.87 33.86 36.21 2.22 8.89
CP-160x60x20x2 160 60 20 2 6.14 4.8 240.35 6.26 30.04 30.48 2.23 7.37
CP-170x60x20x2 170 60 20 2 6.34 4.96 277.13 6.61 32.6 31.08 2.21 7.42
CP-180x60x20x2.5 180 60 20 2.5 8.11 6.34 390.3 6.94 43.37 38.42 2.18 9.06
CP-180x65x20x2.5 180 65 20 2.5 8.36 6.54 409.99 7 45.55 46.67 2.36 10.24
CP-180x65x20x3 180 65 20 3 9.96 7.8 484.66 6.98 53.85 54.48 2.34 11.95
CP-185x65x20x4 185 65 20 4 13.29 10.36 669.11 7.1 72.34 69.29 2.28 15.12
CP-200x60x20x2 200 60 20 2 6.94 5.43 406.9 7.66 40.69 32.69 2.17 7.54
CP-200x60x20x2.5 200 60 20 2.5 8.61 6.73 501.28 7.63 50.13 39.68 2.15 9.15
CP-200x60x20x3 200 60 20 3 10.26 8.03 592.8 7.6 59.28 46.23 2.12 10.67
CP-200x65x20x2.5 200 65 20 2.5 8.86 6.93 525.66 7.7 52.57 48.23 2.33 10.35
CP-200x65x20x3 200 65 20 3 10.56 8.27 621.91 7.67 62.19 56.3 2.31 12.08
CP-220x60x20x2.5 220 60 20 2.5 9.11 7.12 629.48 8.31 57.23 40.8 2.12 9.23
CP-220x65x20x3 220 65 20 3 11.16 8.74 780.28 8.36 70.93 57.93 2.28 12.2
CP-220x65x20x4 220 65 20 4 14.69 11.46 1012.48 8.3 92.04 73.05 2.23 15.39
CP-240x60x20x2.5 240 60 20 2.5 9.61 7.52 775.9 8.99 64.66 41.81 2.09 9.3
CP-240x65x20x3 240 65 20 3 11.76 9.21 960.97 9.04 80.08 59.39 2.25 12.29
CP-240x65x20x4 240 65 20 4 15.49 12.09 1248.52 8.98 104.04 74.89 2.2 15.52
CP-250x70x20x3 250 70 20 3 12.36 9.68 1105.82 9.46 88.47 72.19 2.42 13.86
CP-250x70x20x3 250 70 20 3 12.36 9.68 1105.82 9.46 88.47 72.19 2.42 13.86
CP-250x70x20x4 250 70 20 4 16.29 12.72 1438.58 9.4 115.09 91.34 2.37 17.56
CP-250x80x20x3 250 80 20 3 12.96 10.15 1197.34 9.61 95.79 100.57 2.79 17.13
CP-250x80x20x4 250 80 20 4 17.09 13.35 1559.62 9.55 124.77 127.95 2.74 21.8
CP-300x80x20x3 300 80 20 3 14.46 11.33 1847.45 11.3 123.16 105.85 2.71 17.42
CP-300x90x20x4 300 90 20 4 19.89 15.54 2586.98 11.41 172.47 181.63 3.02 26.91
CP-350x100x20x4 350 100 20 4 22.69 17.74 3981.31 13.25 227.5 247.79 3.3 32.5
