Open Square Pipe


Open Square Pipe
Open square pipes are mainly used in,
  • Process Industry
  • Conveyors

  Max. Min.
W = H 450 12
L1 and L2 30 5
t 8 1

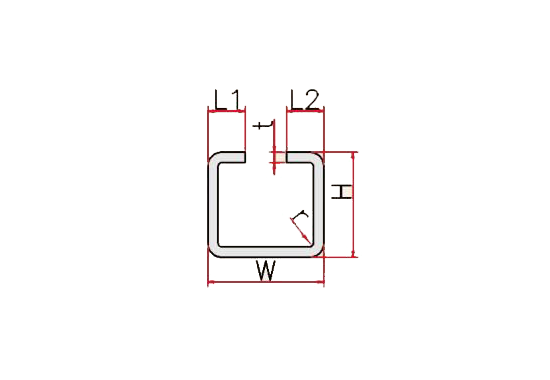

Section W = H L1 = L2 t C/S Area Mass Ixx kxx Zxx Iyy kyy Zyy
SQ-WxHxLxt mm mm mm cm2 Kg/m cm4 cm cm3 cm4 cm cm3
SQ-15x15x4.5x1.5 15 4.5 1.5 0.65 0.51 0.13 0.46 0.16 0.18 0.52 0.24
SQ-20x20x5x1.5 20 5 1.5 0.89 0.69 0.37 0.65 0.32 0.51 0.76 0.51
SQ-20x20x8x2 20 8 2 1.26 0.97 0.56 0.67 0.53 0.63 0.71 0.63
SQ-25x25x7.5x1.5 25 7.5 1.5 1.19 0.93 0.9 0.87 0.65 1.12 0.97 0.9
SQ-25x25x7.5x2 25 7.5 2 1.54 1.19 1.1 0.85 0.79 1.38 0.95 1.11
SQ-25x25x10x1.5 25 10 1.5 1.26 0.99 1.03 0.9 0.78 1.13 0.95 0.91
SQ-30x30x10x1.5 30 10 1.5 1.49 1.17 1.76 1.09 1.07 2.08 1.18 1.39
SQ-30x30x10x2 30 10 2 1.94 1.51 2.18 1.06 1.33 2.6 1.16 1.73
SQ-30x30x12x1.5 30 12 1.5 1.55 1.21 1.9 1.11 1.2 2.09 1.16 1.39
SQ-30x30x12x2 30 12 2 2.02 1.57 2.37 1.08 1.5 2.61 1.14 1.74
SQ-30x30x10x1.5 30 10 1.5 1.49 1.17 1.76 1.09 1.07 2.08 1.18 1.39
SQ-35x35x12x2 35 12 2 2.32 1.81 3.72 1.27 1.95 4.36 1.37 2.49
SQ-35x35x8x2.5 35 8 2.5 2.64 2.04 3.71 1.19 1.81 5.05 1.38 2.88
SQ-40x40x10x1.5 40 10 1.5 1.94 1.52 4.05 1.44 1.76 5.23 1.64 2.62
SQ-40x40x12x2 40 12 2 2.62 2.04 5.5 1.45 2.46 6.72 1.6 3.36
SQ-40x40x15x2 40 15 2 2.74 2.14 6.02 1.48 2.81 6.78 1.57 3.39
SQ-40x40x15x2.5 40 15 2.5 3.36 2.61 7.16 1.46 3.35 8.09 1.55 4.04
SQ-45x45x15x2 45 15 2 3.04 2.37 8.43 1.67 3.42 9.9 1.81 4.4
SQ-45x45x15x2.5 45 15 2.5 3.74 2.9 10.08 1.64 4.09 11.87 1.78 5.28
SQ-50x50x15x2 50 15 2 3.34 2.61 11.38 1.85 4.08 13.82 2.04 5.53
SQ-50x50x15x2.5 50 15 2.5 4.11 3.2 13.66 1.82 4.9 16.66 2.01 6.66
SQ-50x50x20x2 50 20 2 3.54 2.76 12.74 1.9 4.83 13.94 1.99 5.58
SQ-50x50x20x2.5 50 20 2.5 4.36 3.4 15.34 1.88 5.82 16.81 1.96 6.72
SQ-50x50x20x3 50 20 3 5.16 4.03 17.72 1.85 6.72 19.45 1.94 7.78
