Interlocking Beam


Interlocking Beam

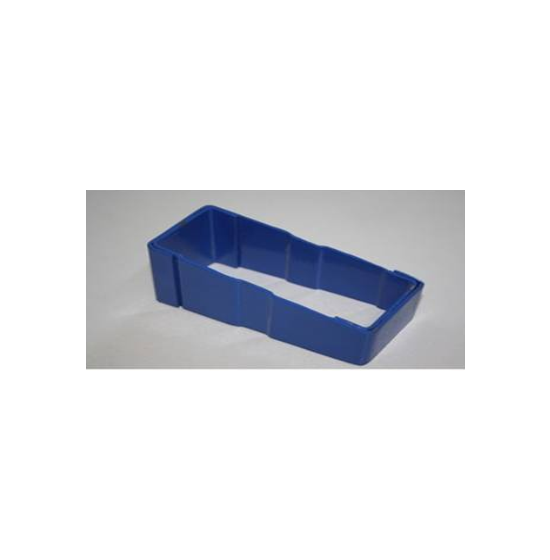

Interlocking beams is a light weight solution for light-medium load applications. It allows more moment of inertia as thickness is doubled at the flanges. ILBs are used in,


  Max. Min.
W 150 80
H1 and H2 50 44.5
L1 and L2 15 10
t 2 1
Section W H1 H2 L1 = L2 t C/S Area Mass Ixx kxx Zxx Iyy kyy Zyy
IB-WxHxt mm mm mm mm mm cm2 Kg/m cm4 cm cm3 cm4 cm cm3
IB-80x49.5x1.5 80 49.5 44.5 15 1.5 5.99 4.55 63.55 3.26 15.6 29.28 2.21 11.83
IB-80x50x2 80 50 45 15 2 7.96 6 83.64 3.24 20.4 38.87 2.21 15.55
IB-90x50x2 90 50 45 15 2 8.36 6.31 109.76 3.62 23.86 43.03 2.27 17.21
IB-100x49.5x1.5 100 49.5 44.5 15 1.5 6.59 5.02 106.16 4.02 20.92 35.51 2.32 14.35
IB-100x50x2 100 50 45 15 2 8.76 6.63 140.06 4 27.46 47.18 2.32 18.87
IB-120x49.5x1.5 120 49.5 44.5 15 1.5 7.19 5.49 161.94 4.75 26.66 41.74 2.41 16.86
IB-120x50x2 120 50 45 15 2 9.56 7.25 214 4.73 35.08 55.49 2.41 22.2
IB-140x49.5x1.5 140 49.5 44.5 15 1.5 7.79 5.96 232.09 5.46 32.8 47.97 2.48 19.38
IB-140x50x2 140 50 45 15 2 10.36 7.88 307.06 5.44 43.25 63.8 2.48 25.52
IB-150x50x2 150 50 45 15 2 10.76 8.2 361.26 5.79 47.53 67.95 2.51 27.18
