Floor Deck

Floor deck can be used as a light weight platform in many different industries. It is easy to construct the platform with the deck sections. The deck sections are corrugated to provide better grip, the corrugation also increase the strength of the section. The main uses of the deck section are in,

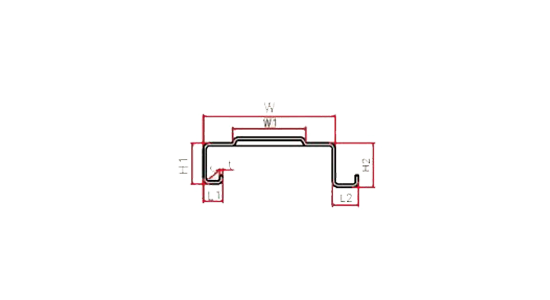

Floor Deck

  Max. Min.
W 250 150
H1 and H2 30 28
L1 and L2 18 13.5
t 2 2

Section W H1 H2 L1 L2 t C/S Area Mass Ixx kxx Zxx Iyy kyy Zyy
FLR-Wxt mm mm mm mm mm mm cm2 Kg/m cm4 cm cm3 cm4 cm cm3
FLR-250x2 250 30 28 18 13.5 2 6.68 5.23 5.63 0.92 2.33 500.77 8.66 39.16
FLR-200x2 200 30 28 18 13.5 2 5.68 4.44 5.35 0.97 2.3 283.96 7.07 27.67
FLR-150x2 150 30 28 18 13.5 2 4.68 3.66 4.95 1.03 2.24 138.09 5.43 17.87
