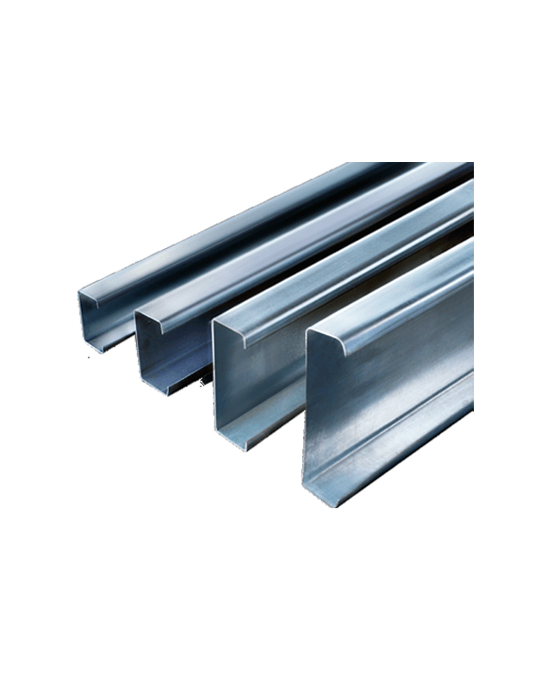

Lipped Channel

Lipped Channel is a good alternative for the hot/cold rolled channels as it offers some advantages over them, such as,
  • Reduced thickness
  • Saving in cost Lipped channels are used in applications like,
  • Steel structures
  • Conveyor Guides
  • Storage Systems
  • Support Systems
  • Electrical Applications
  • Pollution Control Equipments
  • Architectural Applications
Lipped Channel
  Max. Min.
W 20 12
H1 and H2 80 10
L1 and L2 30 5
t 8 1
Section W H1 = H2 L1 = L2 t C/S Area Mass Ixx kxx Zxx Iyy kyy Zyy
LCH-WxHxLxt mm mm mm mm cm2 Kg/m cm4 cm cm3 cm4 cm cm3
LCH-15x10x4.5x0.8 15 10 4.5 0.8 0.29 0.23 0.03 0.32 0.05 0.08 0.51 0.1
LCH-18x12x4.5x1 18 12 4.5 1 0.43 0.33 0.06 0.38 0.09 0.18 0.64 0.2
LCH-20x15x5x1.5 20 15 5 1.5 0.74 0.58 0.17 0.48 0.19 0.38 0.72 0.38
LCH-20x25x5x0.8 20 25 5 0.8 0.58 0.46 0.42 0.85 0.3 0.39 0.82 0.39
LCH-20x30x5x1.5 20 30 5 1.5 1.19 0.93 1.14 0.98 0.68 0.77 0.8 0.77
LCH-25x25x10x1.5 25 25 10 1.5 1.26 0.99 1.03 0.9 0.78 1.13 0.95 0.91
LCH-28x15x8x2 28 15 8 2 1.22 0.94 0.31 0.5 0.35 1.16 0.98 0.83
LCH-30x15x8x1.5 30 15 8 1.5 0.98 0.77 0.27 0.53 0.3 1.14 1.08 0.76
LCH-30x25x10x2 30 25 10 2 1.74 1.35 1.37 0.89 0.99 2.21 1.13 1.47
LCH-30x30x12x2.5 30 30 12 2.5 2.46 1.9 2.77 1.06 1.75 3.06 1.12 2.04
LCH-30x40x12x2.5 30 40 12 2.5 2.96 2.3 5.79 1.4 2.76 4.01 1.16 2.67
LCH-36x16x10x2 36 16 10 2 1.5 1.16 0.47 0.56 0.5 2.43 1.27 1.35
LCH-38x18x8x2.5 38 18 8 2.5 1.86 1.43 0.64 0.59 0.57 3.46 1.36 1.82
LCH-40x20x8x1.5 40 20 8 1.5 1.28 1 0.64 0.71 0.51 2.94 1.51 1.47
LCH-40x20x10x2 40 20 10 2 1.74 1.35 0.88 0.71 0.73 3.77 1.47 1.88
LCH-40x30x10x2 40 30 10 2 2.14 1.66 2.47 1.08 1.4 5.21 1.56 2.61
LCH-50x25x12x2 50 25 12 2 2.22 1.73 1.88 0.92 1.23 7.9 1.89 3.16
LCH-50x25x12x2.5 50 25 12 2.5 2.71 2.1 2.18 0.9 1.43 9.4 1.86 3.76
LCH-60x30x12x2 60 30 12 2 2.62 2.04 3.17 1.1 1.68 14.04 2.32 4.68
LCH-60x30x12x2.5 60 30 12 2.5 3.21 2.49 3.73 1.08 1.98 16.85 2.29 5.62
LCH-60x45x15x2.5 60 45 15 2.5 4.11 3.2 11.33 1.66 4.29 23.46 2.39 7.82
LCH-80x40x20x2 80 40 20 2 3.74 2.92 9.07 1.56 3.77 35.97 3.1 8.99
LCH-80x40x20x2.5 80 40 20 2.5 4.61 3.59 10.87 1.54 4.51 43.69 3.08 10.92
LCH-80x50x20x2.5 80 50 20 2.5 5.11 3.98 18.55 1.91 6.26 51.21 3.17 12.8
LCH-80x50x20x3 80 50 20 3 6.06 4.73 21.48 1.88 7.24 59.84 3.14 14.96
LCH-80x50x20x4 80 50 20 4 7.89 6.12 26.64 1.84 8.98 75.61 3.1 18.9
LCH-100x50x20x2.5 100 50 20 2.5 5.61 4.38 20.21 1.9 6.45 86.71 3.93 17.34
LCH-100x50x20x3 100 50 20 3 6.66 5.2 23.42 1.88 7.47 101.66 3.91 20.33
LCH-100x70x20x3 100 70 20 3 7.86 6.15 53.07 2.6 12.44 129.9 4.07 25.98
LCH-100x70x20x4 100 70 20 4 10.29 8.01 67 2.55 15.69 166.22 4.02 33.24
LCH-125x60x25x5 125 60 25 5 13.36 10.36 64.87 2.2 17.2 309.08 4.81 49.45
LCH-150x80x25x5 150 80 25 5 16.61 12.91 141.41 2.92 27.57 584.57 5.93 77.94
