Solar structure manufacturers


Profiles for Electrical Industries

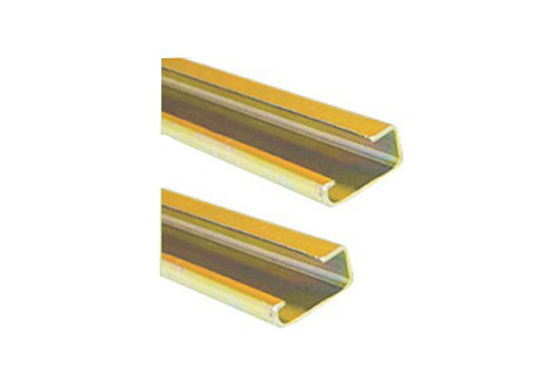

Terminal Channel
Terminal Channel
Section W H1 H2 L1 L2 t
TCH-WxHxt mm mm mm mm mm mm
TCH-32x15x1.5 32 15 9 10 5.00 1.50


Din Channel (MCB Channel)
It is a fitting for MCBs.
Din Channel (MCB Channel)
Section W H1 = H2 L1 = L2 t
DIN-WxHxt mm mm mm mm
DIN-25x7.5x1 25 7.5 6 1


Safe Tracks
Safe Tracks are busbars used to transmit current between a steady and a sliding part.
Safe Tracks
Section W H1 = H2 t Material
SF- mm mm mm
SF-M 18 16 2 CR
SF-M 18 16 1.6 Cu
